Laiminated Non Woven Bag / Shopping bag 6 Color Rotogravure Printing Machine
Application:
This machine is suitable for BOPP, PET,PE, CPP, PVC and combined film and paper with same properties.
Features:
1,Seven motor synchronization speed control; PLC system
2,Picture Inspection
3,Auto-register and Per-register system
4,Non-stop Auto Material exchange
5,place Swim Arm Tension Control
6,2 place per-dry heating & assistant dry hearting at the unwinding and rewinding part
7,Shaft-less air cylinder device
8.PU rubber roller
Technical Parameters:
NOTE: The specification is based on 6 colors
| Model | ONLY-61200 |
| Web width | 1200mm |
| Printing speed | max200m/min |
| Print cylinder diameter | 100-350mm |
| Rolling material diameter. | 600mm |
| Print cylinder cross adjustable | 20mm |
| Print cylinder longitudinal adjustable | 1M |
| Registering accuracy | ±0.12mm |
| Total power | 100kw |
| Weight | 40000kg |
| Overall dimensions(L×W×H)(mm) | 12800*3200*2800mm |
| Winder device: Unwinder and rewinder is featured by the independent driver rotary double-post. The printing materials is fastened by the air shaft, it is safe and reliable, Auto splicing in high-speed. |
| Cylinder loading system: Shaft-less for the time-saving and conveniency. |
| Color register system: Vertical automatic register and pre-register device, improve accuracy of registration., |
| Doctor Blade system: The movement of doctor blade is on the double-shaft by the independent electric motor. |
| Drying system: Enclosed air circulatory heating oven, Outlay electrical heater and automatic temperature controller |
| Machine Control system: Winder , in-feet and out-feet use import PLC control seven AC vector converter motors and Four closed-loop tension control system, the main electronic and Pneumatic part are imported. |

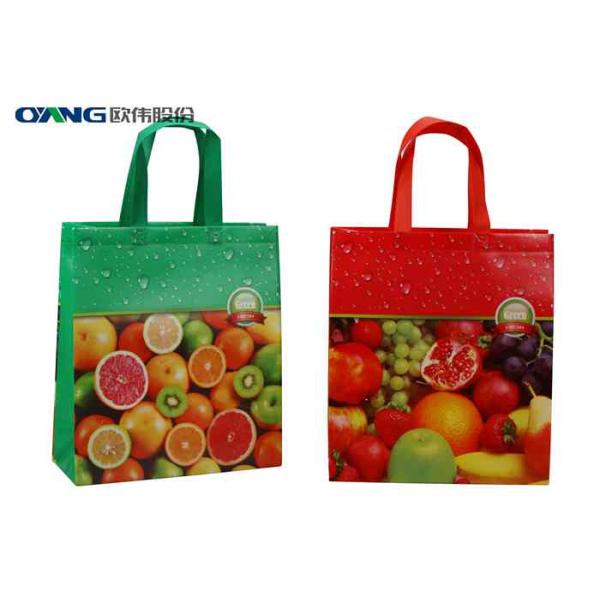

The printing bag samples:
The machine details:
